1.1. Opening Remarks

Meteo-42 data loggers by Ammonit Measurement GmbH are professional measuring devices which record meteorological details in order to calculate the wind energy potential of a site. The data loggers can be used flexibly and are well-suited for a wide range of applications. The implemented standards of measurement evaluation and data security meet the requirements of professional specialists. However, you conveniently configure sensors, statistics and the communication via the user-friendly web interface.

Before installation read this manual carefully. Remember that time spent now setting up the data logger properly might save you from losing valuable data!

We recommend to configure and to test sensors and communication before the measuring equipment is installed on the mast.

We hope you find this manual clear and easy to understand. If you have any comments or suggestions, please let us know.

1.2. Overview of Meteo-42

Depending on the model, Meteo-42 offers up to 48 measuring channels, i.e. up to 14 analog differential voltage inputs, up to 12 counters, up to 12 pulse width inputs and up to 7 digital channels. In addition, Meteo-42 can support up to 24 intelligent sensors via up to 3 physically separated RS-485 interfaces.

In general, Meteo-42 is divided into two main units: A communication unit and a measuring unit. The communication unit offers 3 USB slots to connect a PC, modem, web camera, or flash drive, and 1 Ethernet slot to connect a camera or router. Additionally, the Meteo-42 can be connected to the network via Ethernet.

The basic concept is shown in detail in Figure 1.1, “Overview of Meteo-42L”.

Figure 1.1. Overview of Meteo-42L

Picture of Meteo-42L with Caption

1.3. Meteo-42 Series

The Meteo-42 series differs mainly in the number of input and output channels and in the measurement data storage capacity. Some basic information about the different models (Meteo-42M, Meteo-42L, and Meteo-42A) are shown in Table 1.1, “Meteo-42 feature overview”.

Table 1.1. Meteo-42 feature overview

FeatureMeteo-42MMeteo-42LMeteo-42A
Input channelsCounters8122
Digital474
Analog Voltage81414
Pulse Width8122
RS-485 Ports232
Output channelsSwitches484
200uA Current Source111
5V Voltage Source111
SCADA1 dedicated RS-485 SCADA port
Memory SizeSource Data2 GiB
CSV Dataapprox. 1.8 GiB
ConnectivityUSB2 USB host, 1 USB device
Ethernet1 for router, LAN
Display and keysLC display with backlight (4 lines each with 20 characters), five keys
Power supply9 - 36 V (DC)

Find below an overview of the terminals. The white areas indicate available connectors.

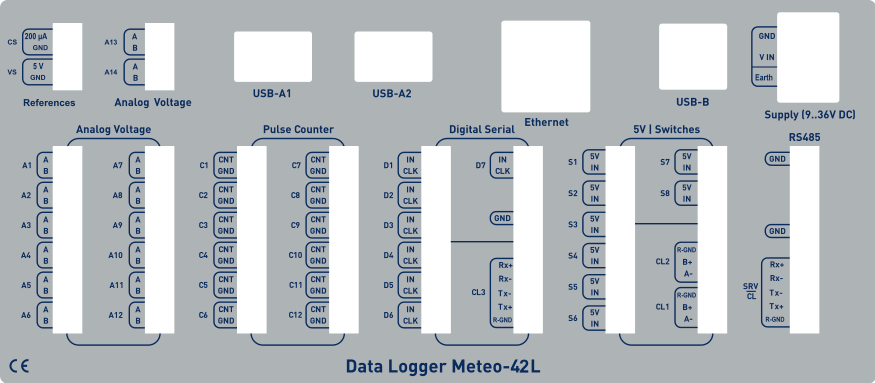

Figure 1.2. Meteo-42L Terminal

Picture of Meteo-42L Terminal

Figure 1.3. Meteo-42M Terminal

Picture of Meteo-42M Terminal

Figure 1.4. Meteo-42A Terminal

Picture of Meteo-42A Terminal

1.4. The Two Systems of Meteo-42

Meteo-42 consists of two basic systems: the Measurement And Recording System (MARS) and the Configuration, Evaluation and Communication System (CECS).

For measuring and recording data, only MARS is needed. MARS is a Cortex™-M3 microcontroller designed to work with minimal power consumption. It controls the analog data logger hardware, measurement channels and data storage. It has no access to the display or to the devices that could be connected via USB or Ethernet.

In order to use connected devices and to operate the display or the web interface, CECS has to be started. CECS is a fully operational embedded Linux™ computer with a 32-bit microcontroller. Starting it activates all Meteo-42's features, but increases power consumption.

To save power during a measurement campaign, CECS is usually powered down and only MARS is running. MARS starts, when the power connector is plugged in.

The booting process of the MARS software is indicated by the illumination of the two lower LEDs (red and yellow). Both LEDs will turn off, when the MARS is started successfully.

CECS can be started either manually or automatically. To manually start CECS, press the middle button of the keyboard and hold it until the display turns on. A manual start of CECS is necessary for the initial configuration of Meteo-42.

Later on, during a measurement campaign, CECS will be started by MARS according to the configured time schedule, e.g. to upload measurement data. After the scheduled actions have been executed, CECS turns off automatically to reduce power consumption.

Figure 1.5. Block diagram of Meteo-42


1.4.1. CECS: Switch on / off behaviour

CECS is configured to run for 20 minutes, before it automatically turns off. When the time is expired and an action is still running, e.g. sending an email, the system will wait until the action is finished and will switch off afterwards. The remaining time is displayed in the status box (see Section 3.2, “Global Control Elements”) of the Meteo-42 web interface.

[Note]Note

With every user action, e.g. navigating the web interface or pressing a button on the keyboard, the remaining time will be reset to 20 minutes.

For SCADA operation, CECS has to run permanently. This is possible by means of the CECS always active mode. If CECS always active mode is selected, it will be displayed in the status box (see Section 3.2, “Global Control Elements”) in the web interface with the infinity symbol (∞) as well as on the Meteo-42 display with the word Always.

[Note]Note

The CECS always active mode is not selected by default. If the SCADA server is activated, the CECS always active mode is automatically set.

If power supply is disconnected and the data logger shuts down while CECS was running in the CECS always active mode, it will start automatically as soon as power is available again.

[Important]Important

When CECS is configured to be permanently on, you cannot manually shut down the system by pressing the middle button on the data logger.

1.5. Data Storage

CECS and MARS both have access to the measurement data storage, referred to as the shared source data memory. It is possible to view or download the source data via the web interface, see Section 6.7, “Access to Source Data”.

[Note]Note

For optimal data recording, it is recommended to format the data storage before starting a new measurement campaign. Formatting is a very fast process, which only takes a few seconds and can be performed via the web interface under the SystemAdministration menu. For further details see Section 4.2, “System Administration”.

1.6. User Interfaces

There are two ways to control and configure the data logger: via web interface or by using the buttons of Meteo-42. The second method is only intended for checking and testing, since this control menu provides only a limited number of configuration options. However, the web interface offers all available setup options and is recommended for the configuration of the device. To use the web interface a TCP/IP or USB connection is required.

Thanks to its web interface, Meteo-42 can also be operated via Internet with mobile devices, e.g. smartphone or tablet PC.

[Important]Important

The Meteo-42 web interface is accessed via HTTPS connection, which uses high-grade encryption (AES-256). This connection cannot be decrypted easily using today's technologies.

1.7. Communication Methods and Required Devices

Depending on the project, Meteo-42 offers various methods for communication and data retrieval. All available methods are commonly used as well as easy to handle and to configure. In order to set up the connection to Meteo-42, devices like Ethernet cable or modem are necessary as shown in the following table.

Method / ActionConfigurationSoftware UpdateData DownloadRequired DevicesComment
Meteo-42 (stand-alone)no (only a few settings can be changed)nono-Using the display (see Section 4.5.1, “Display Access” and Chapter 9, Using the Display).
USB flash drive (connected to data logger)nonoyesUSB flash driveManual data download on pre-configured USB flash drive (see Section 4.2, “System Administration”).
LAN (data logger connected to LAN)yesyes (Internet access required)yes (Data transfer via email, SCP/FTP/SFTP/FTPS, AmmonitOR or manual data download via web interface)Ethernet cableRecommended for initial configuration and software updates (see Section 2.3, “Connecting Meteo-42 via Ethernet to your LAN”).
WLAN (PC, laptop etc. connected to data logger's WLAN)yesnoyes (Download via web interface)USB WLAN dongleRecommended on site for maintenance (see Section 7.8, “Configuring WLAN”).
Point-to-Point Ethernet (data logger connected to PC)yesnoyes (Download via web interface)Ethernet cablePC has to be configured (see Section 2.4, “Connecting Meteo-42 to your Windows 10™ PC via point-to-point Ethernet connection”).
USB (data logger connected to PC)yesnoyes (Download via web interface)USB (A/B) cableBackup access. Driver file might be required (see Section 2.5, “Connecting Meteo-42 with your Windows 10™ PC via USB”).
USB (data logger connected to smartphone)yesyes, tethering function of the smartphone needs to be activatedyes (Download via web interface)USB cable of the smartphone (accessory)Convenient for remote servicing or software upgrades, when no modem is installed.
Modem access (data logger connected to modem, e.g. GPRS/GSM, directional radio, satellite)yesyes (Internet access required)yes (Data transfer via email, SCP/FTP/SFTP/FTPS, AmmonitOR or manual data download via web interface)Modem and accessory cableThanks to AmmonitConnect a standard SIM card can be used in a GSM modem. A SIM card with a static IP address is not necessary. (see Section 7.9, “Configuring the Modem”).
SCADA over RS-485 (Modbus RTU)nonoyes (Modbus protocol)-Modbus register map has to be configured for data retrieval (see Section 8.1, “Configuring Meteo-42 for SCADA).
SCADA over Ethernet (Modbus TCP/IP)nonoyes (Modbus protocol)-Modbus register map has to be configured for data retrieval (see Section 8.1, “Configuring Meteo-42 for SCADA).
